How 5KVA Servo Stabilizer Works: Technical Guide with Formula, Uses & Benefits

A 5KVA servo stabilizer is an electrical device used to maintain a stable voltage supply for home and office appliances. In areas where electricity supply is unstable, voltage often fluctuates above or below safe limits. These fluctuations can damage appliances like air conditioners, refrigerators, and computers. A servo stabilizer solves this problem by continuously regulating voltage and ensuring a constant output.

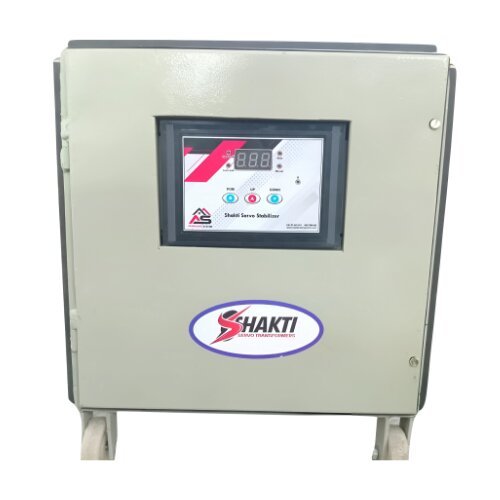

What is a 5KVA Servo Stabilizer?

A 5KVA servo stabilizer is a voltage correction device designed for medium-load applications. The “5KVA” rating means it can handle approximately 4000–5000 watts of electrical load, making it suitable for home use.

It uses a servo motor system that automatically adjusts voltage in real time based on input changes.

Working Principle (With Formula)

The Servo stabilizer works by maintaining a constant output voltage despite variations in input voltage.

Basic relationship:

Vout=Vin×KV_{out} = V_{in} \times KVout​=Vin​×K

Where:

• VinV_{in}Vin​ = Input voltage
• VoutV_{out}Vout​ = Output voltage
• $K$ = Correction factor adjusted by servo motor

Example:

If input voltage drops to 180V and system needs 230V output:

Vout=180×K≈230V_{out} = 180 \times K \approx 230Vout​=180×K≈230

The servo mechanism adjusts the transformer ratio (K) automatically to maintain safe voltage.

How It Actually Works (Step-by-Step)

• It continuously monitors incoming voltage
• Detects any fluctuation instantly
• Servo motor rotates and adjusts transformer coil
• Output voltage is corrected to safe level
• Appliances receive stable electricity

Where 5KVA Servo Stabilizer is Used

It is commonly used in:

• 1 ton / 1.5 ton air conditioners
• Refrigerator + AC combination
• Home electronics (TV, fan, lighting)
• Small office setups
• Shops and clinics

Key Benefits

1. Voltage Stability

Maintains consistent output even during fluctuations.

2. Appliance Protection

Prevents damage due to high or low voltage.

3. Better Efficiency

Ensures smooth operation of motors and compressors.

4. Suitable for Medium Load

Handles multiple appliances at once.

5. Long-Term Cost Saving

Reduces repair and replacement expenses.

Limitations

• Higher initial cost than relay stabilizers
• Requires maintenance over time
• Slight noise due to servo motor operation
• Larger size compared to basic stabilizers

Buying Guide

Before buying a 5KVA servo stabilizer, check:

• Input voltage range (wide range is better)
• Load capacity compatibility
• Copper winding for durability
• Warranty of at least 2–3 years
• Service availability in your area

FAQ

Q1. Is 5KVA enough for home use?

Yes, it is sufficient for one AC, refrigerator, and basic load.

Q2. Why is servo stabilizer better?

Because it provides faster and more accurate voltage correction.

Q3. Does it work automatically?

Yes, it continuously adjusts voltage without manual control.

Q4. Can it handle AC?

Yes, it is suitable for 1 ton and 1.5 ton AC units.

Q5. Is it energy consuming?

No, it consumes very low power internally.

Conclusion

A 5KVA servo stabilizer is a reliable solution for protecting home appliances from unstable electricity supply. Its automatic voltage correction system ensures safe and efficient performance of electrical devices. Maintaining a stable output voltage, it improves appliance life and reduces maintenance costs, making it a smart investment for homes facing frequent voltage fluctuations.
